The Z1 Barrier Panel: Evaluating Foundation MLIPs on 42 Solid-State Electrolyte Chemistries

One step in the trust-layer program: the locked Li-ion conductor panels behind our barrier campaigns — what they are, why they are the right adversaries, and what a migration barrier actually is

Brand film: The Z1 Barrier Panel: Evaluating Foundation MLIPs on 42 Solid-State Electrolyte Chemistries

Video page · Download MP4 · Download captions

The Z1 test range: varied solid-electrolyte sample cells between a charging station and a grid battery, one barrier path crossing each specimen

Every battery is a traffic problem. Ions have to move, and the toll they pay at each crowded passage — the migration barrier — decides whether the battery is fast, safe, and worth building. Our Z1 campaigns measure how well AI models predict those tolls across 42 real materials. This is the tour of what is in the panels, and why these particular materials get a vote on the future of solid-state batteries.

Why lithium-ion conductors, and why these

The next battery generation — solid-state, safer, denser — needs electrolytes made of ceramic, not liquid. Lithium ions have to hop through a dense crystal lattice, and whether they can do it quickly is the single number that decides if the chemistry works. The materials in our panels come from the published LiTraj nebDFT2k benchmark (npj Computational Materials, 2025, DOI 10.1038/s41524-025-01571-z): quantum-chemically computed migration paths through real lithium conductors, with reference barriers from 0.068 eV (barely a speed bump) to 3.25 eV (a wall).

Each path is one specific hop: a lithium ion leaving a comfortable site, squeezing through the narrowest point of its lattice — the transition state — and landing in the next site. The energy at the top of that squeeze, relative to the start, is the barrier. Models that predict barriers accurately can screen thousands of candidate electrolytes on a laptop; models that under-predict them — which is what we measured, systematically, in every model we tested — quietly tell engineers that dead materials look alive.

An exploded solid-state cell: the electrolyte as the safety-critical bridge between electrodes, rendered in indigo while the casing stays ink linework

The test panel: 30 frozen adversaries

The test panel is locked — 30 chemistries, one migration path each, chosen so no single family dominates. It splits into recognizable neighborhoods of the solid-state-battery map:

A solid-electrolyte diffusion cell mounted in a small test rig, with one ceramic grain boundary enlarged in cutaway and a restrained indigo path crossing it — The test rig measures the ion migration barrier across one grain boundary

The materials adversary panel: varied ceramic pellets, thin films, and pressed cells under identical measurement arches

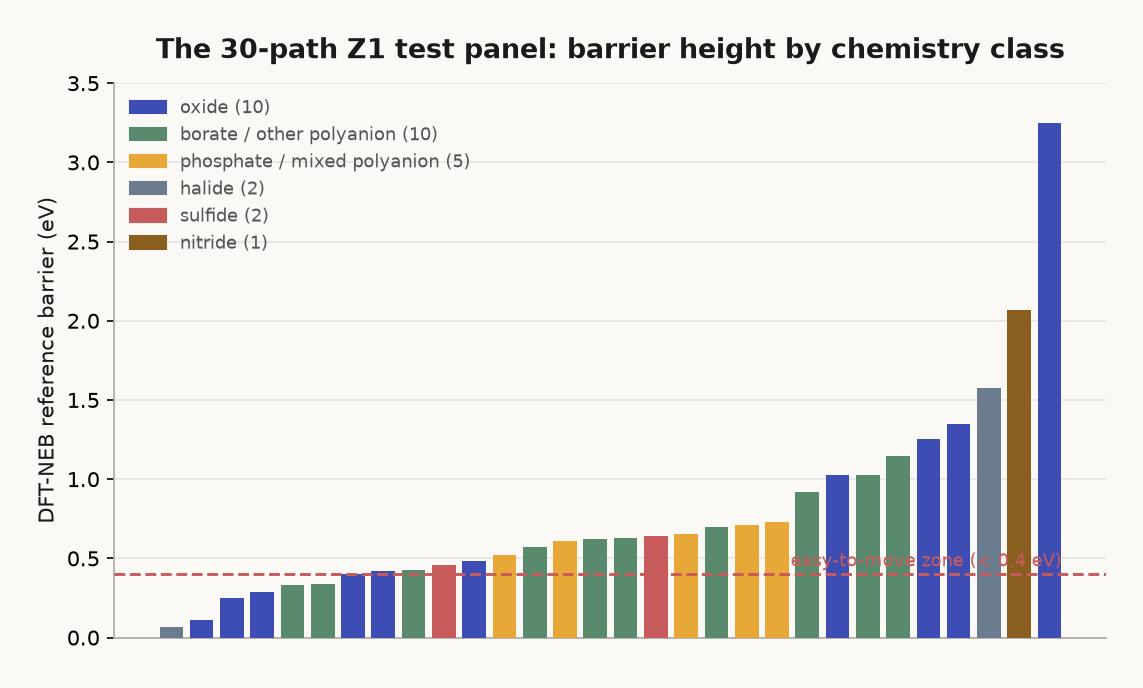

The 30-path Z1 test panel: barrier height by chemistry class

Every number comes from published DFT-NEB calculations — not experiment, and we say so. The panel is frozen with a SHA-256 lock (192fe54a…), so the test set cannot quietly change after results come in.

The training panel: 12 chemistries we never test on

Six electrolyte classes, specimen-plate style

For the correction pilot (Round-5), a correction model is allowed to learn — but never from test materials. The training panel is 12 chemistries from the same dataset’s training split, with zero overlap in chemistry or material identity with the test panel, selected by a deterministic hash order:

Al-Cr-Li-O, B-Cr-Li-O-P, Ba-Li-O, Bi-Li-O-P, Fe-Li-Mn-O-Ti, Fe-Li-Mn-O-V, Fe-Li-O, Fe-Li-O-Ti, In-Li-O-Sc-Si, Li-Na-O-Ti, Li-O-P-Ti, Li-O-V-Zn

This is the honest version of what a real screening loop demands: the correction has to transfer to chemistries it has never seen — if it only works on familiar materials, it is a parlor trick, and the protocol is designed to catch exactly that.

Why these are the right adversaries

Three reasons this panel fights back:

  1. It spans the whole decision space. Barriers from 0.068 to 3.25 eV mean the panel covers “ship it” (under ~0.3 eV), “maybe, with engineering” (0.3–0.7), and “walk away” (>1 eV) — a model that only gets the easy half right will be caught.
  2. It hits the models’ blind spot. These are dense ceramics with under-coordinated transition states — exactly the out-of-equilibrium configurations foundation models under-train on. Our Round-4 result (all four models under-predicting, 135–243 meV mean error against a 40 meV gate) is the proof.
  3. It is public and reproducible. Anyone can rebuild the panel from the source archive (tools/build_z1_barrier_panel.py, byte-identical), check the hash, and re-run the comparison — adversaries with receipts.

An empty fleet-charging depot with a row of chargers backed by sealed solid-state storage cabinets, two electrolyte coupons lie in a foreground test tray — The storage cabinets discharge into the chargers during a brief demand peak
